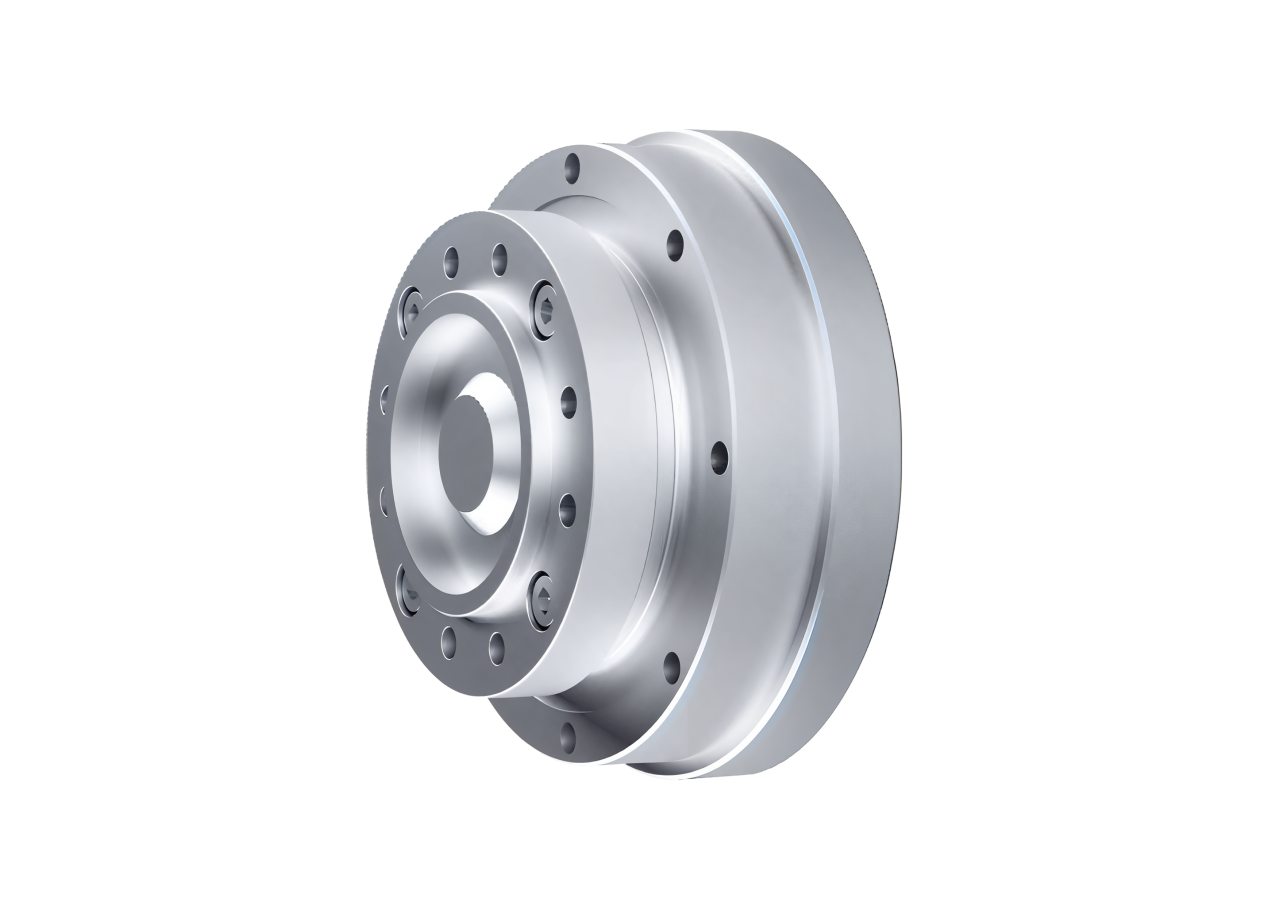

Hat Type with Input Shaft(HGUJ)
Hat Type Harmonic Drive
Unit Type with Hollow Shaft

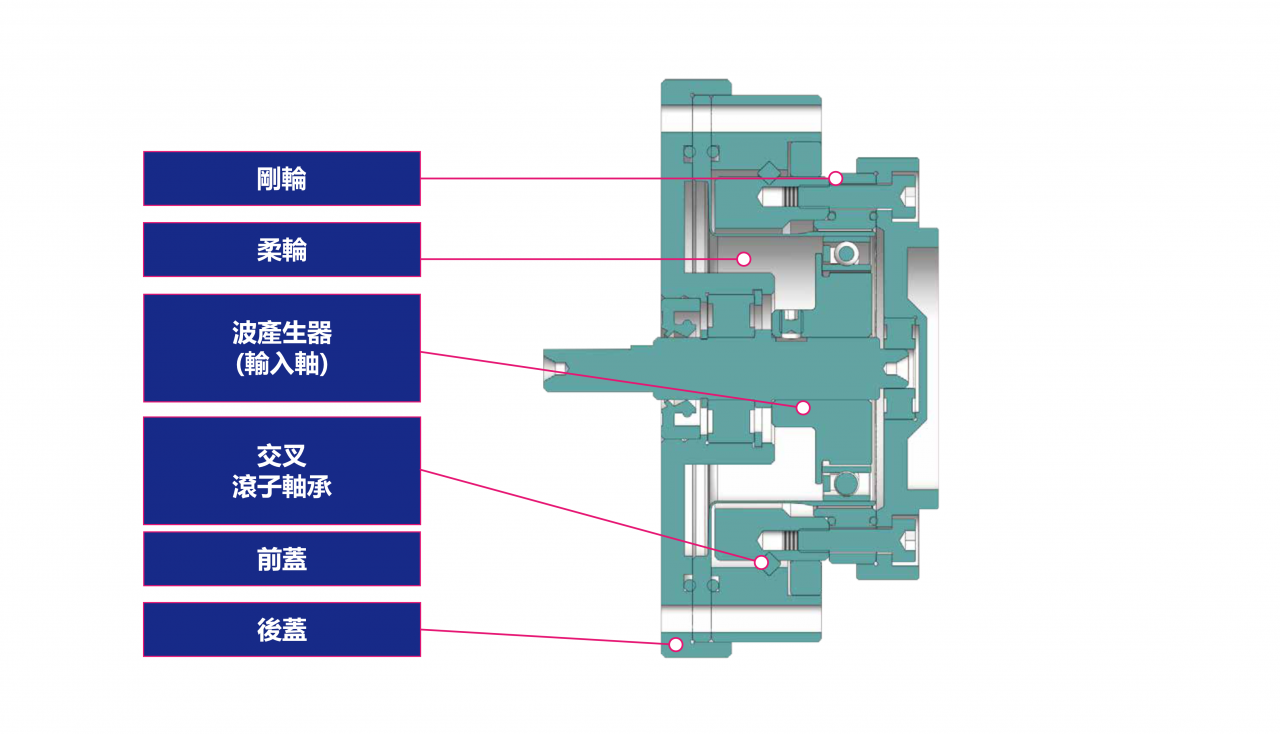

Features
HGUJ series adopts the input shaft structure and uses a coupling to connect with the motor,
which can correspond to a variety of input types, such as pullley, gear, coupling input,
The configuration is designed with front and rear covers,
and shaft seals and O-rings are used as seals.
This reducer configuration has good leak proof effect.
Applications
Automation/ Industry 4.0 / Robotics.
Unit Type with Hollow Shaft
Features
HGUJ series adopts the input shaft structure and uses a coupling to connect with the motor,
which can correspond to a variety of input types, such as pullley, gear, coupling input,
The configuration is designed with front and rear covers,
and shaft seals and O-rings are used as seals.
This reducer configuration has good leak proof effect.
Applications
Automation/ Industry 4.0 / Robotics.

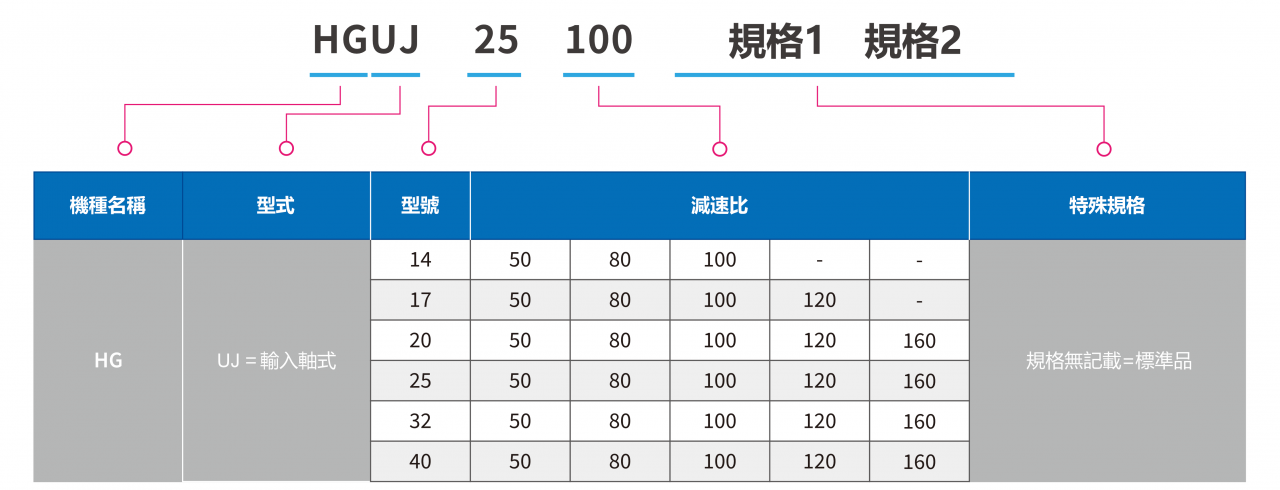

Product Coding

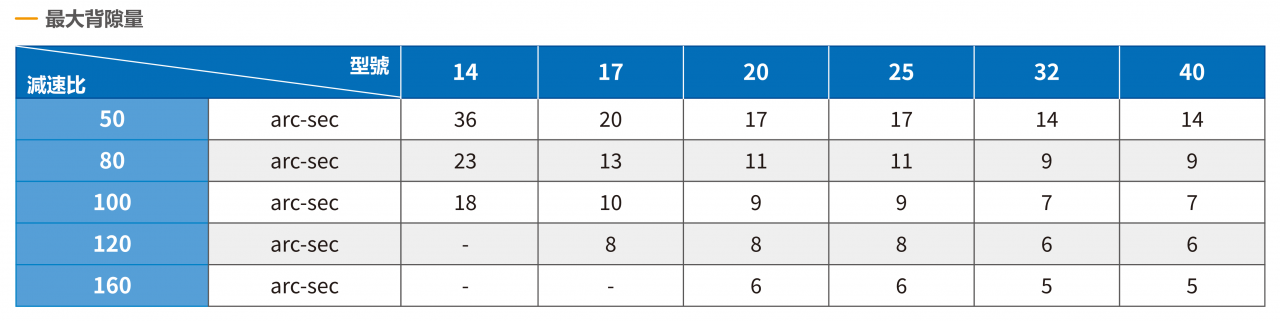

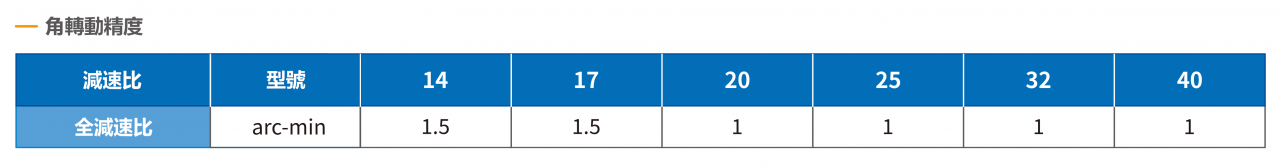

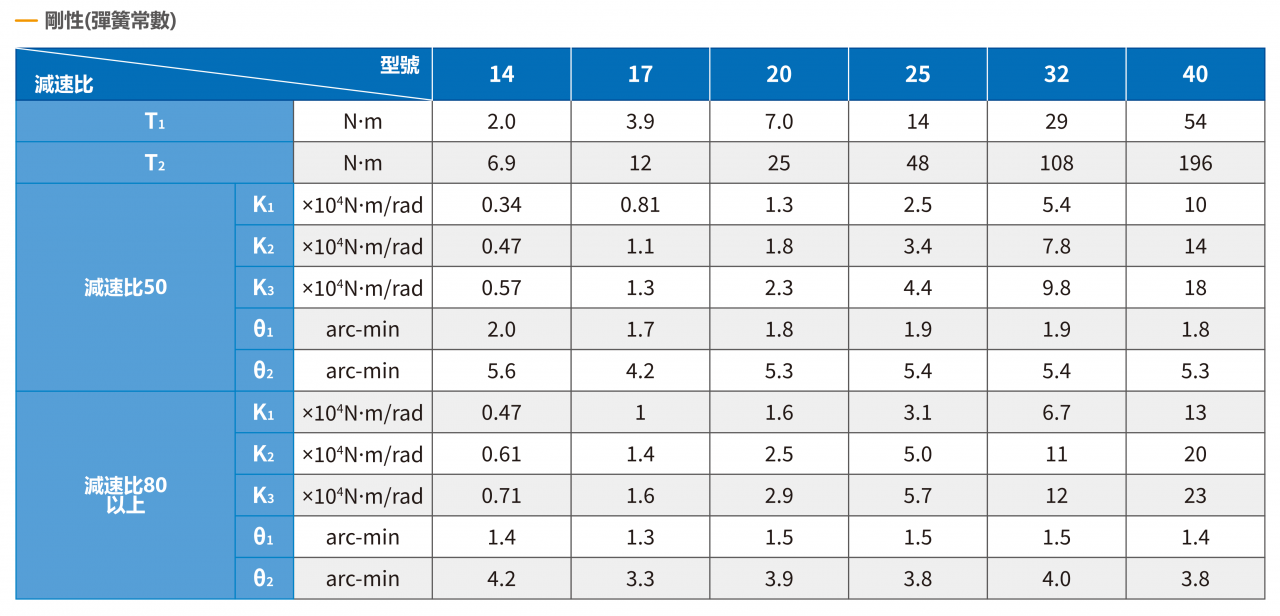

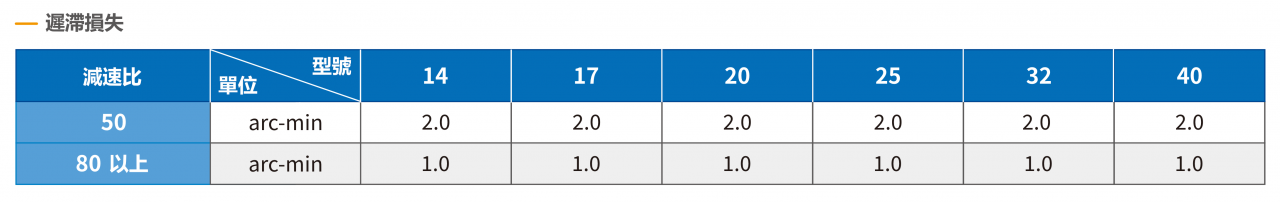

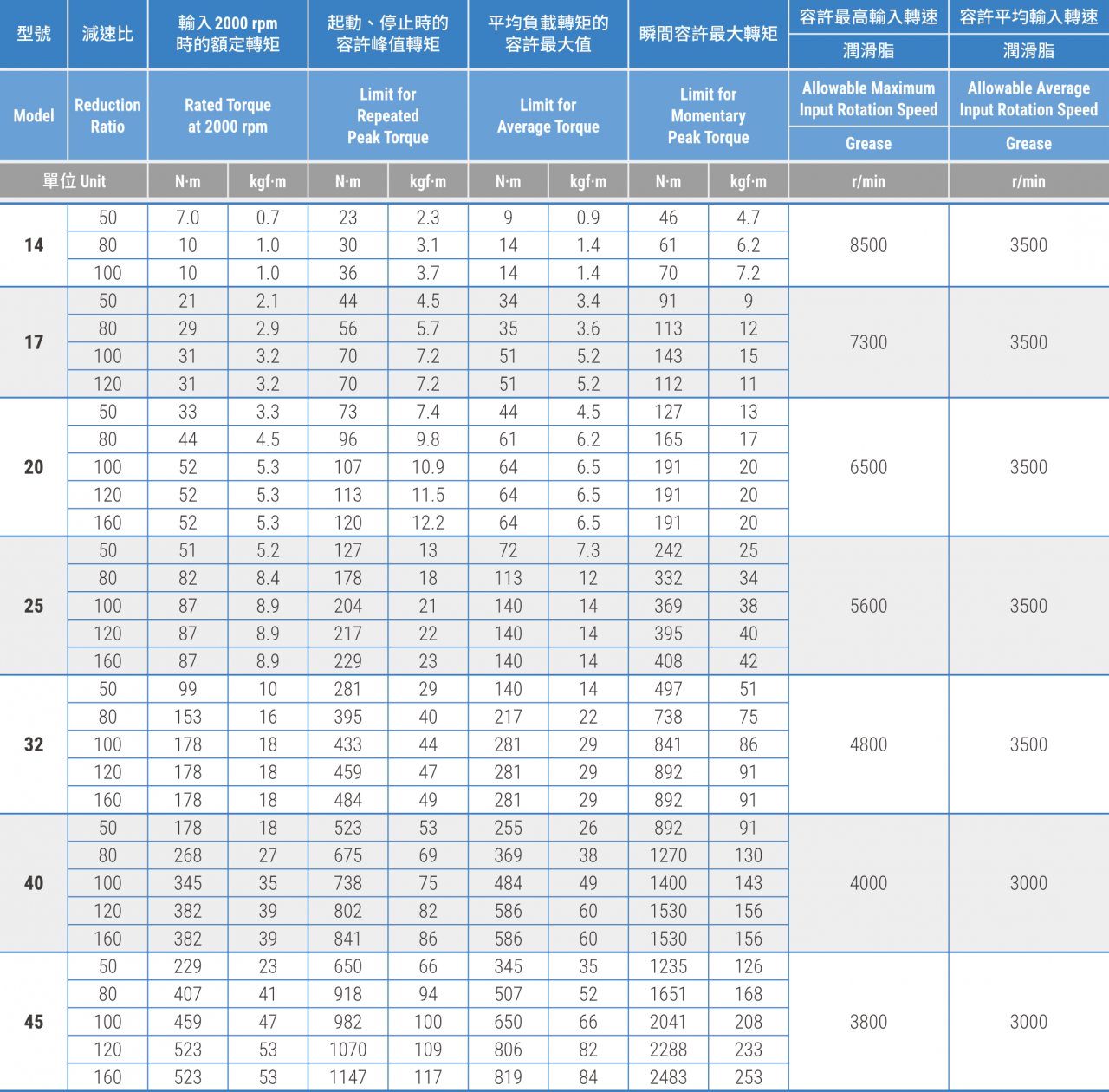

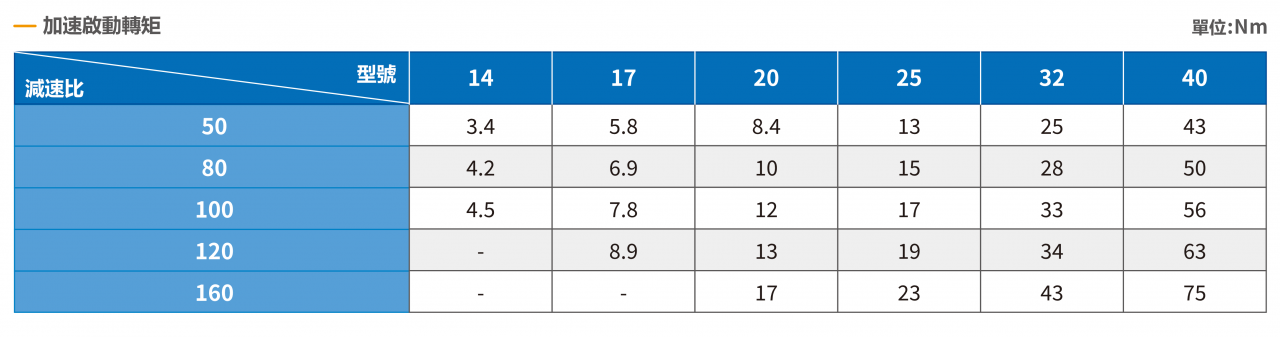

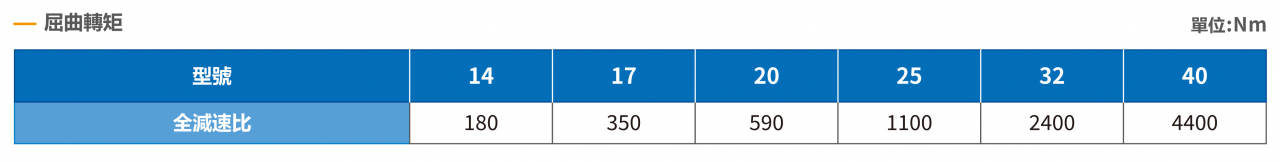

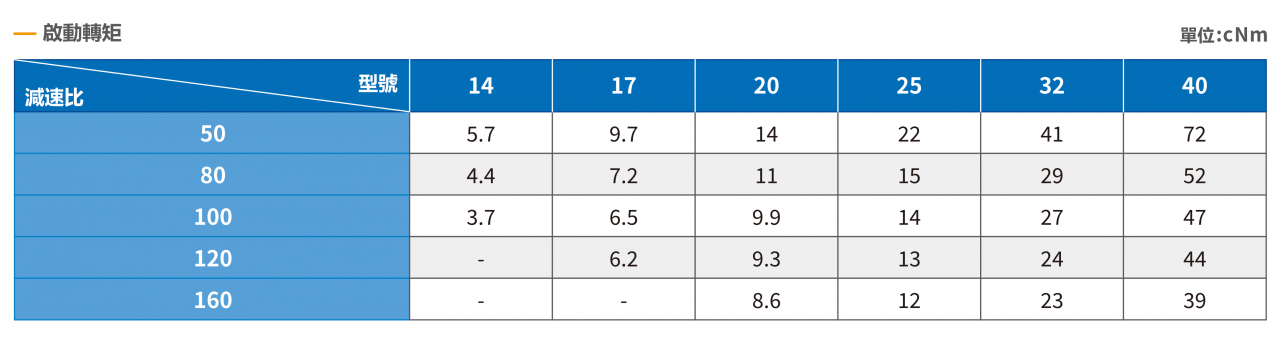

Rated Table

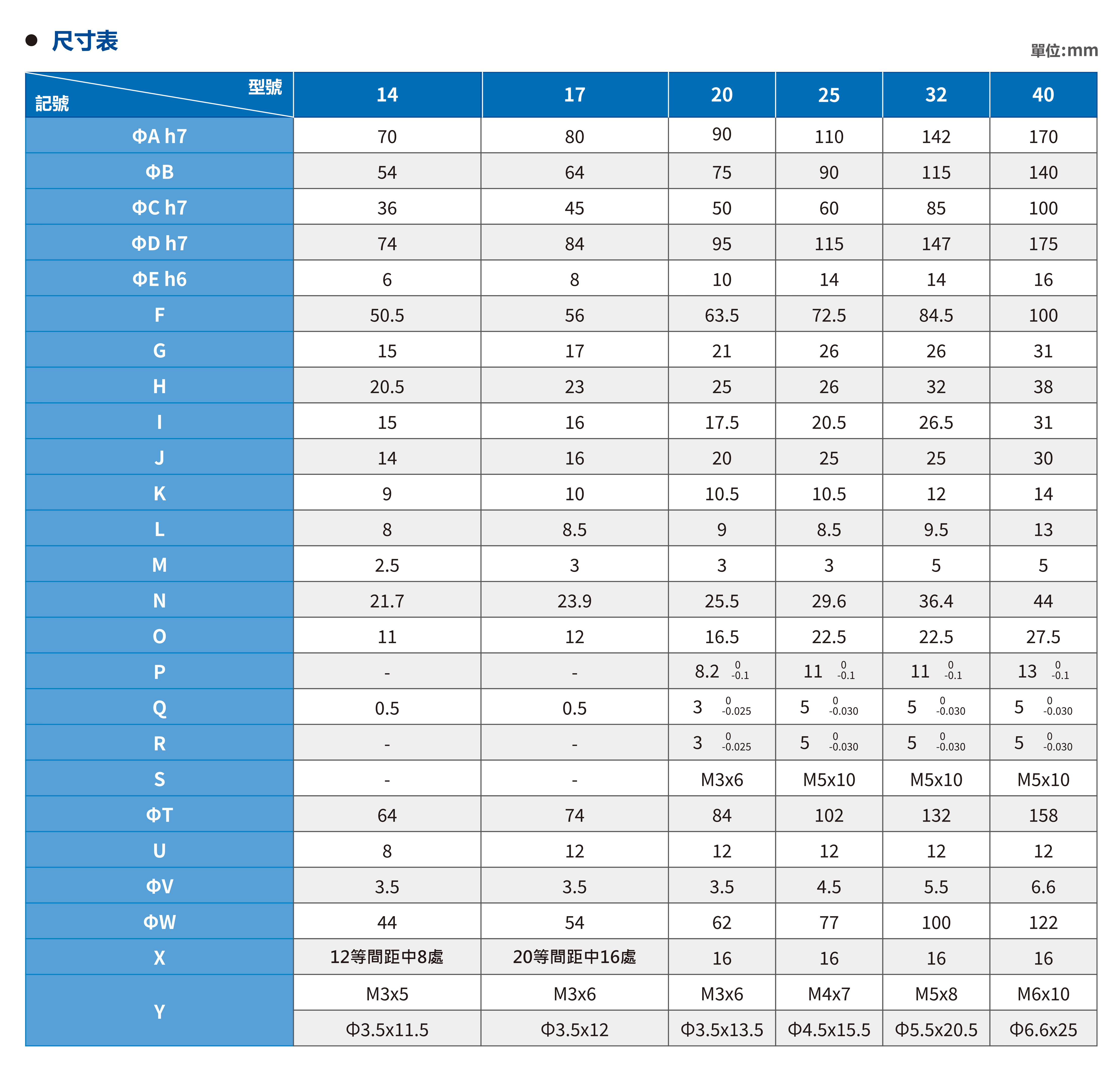

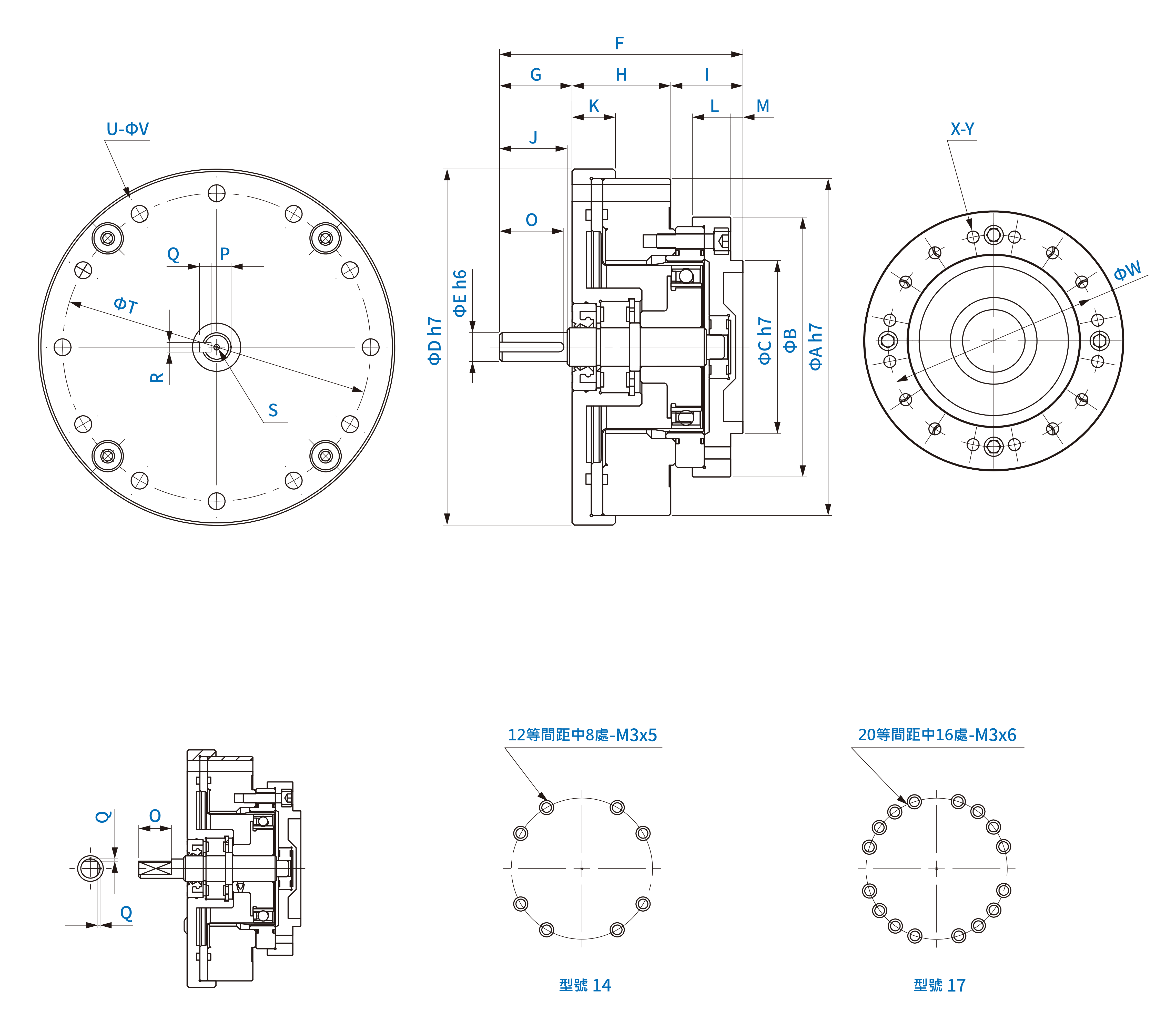

Appearance Drawing
