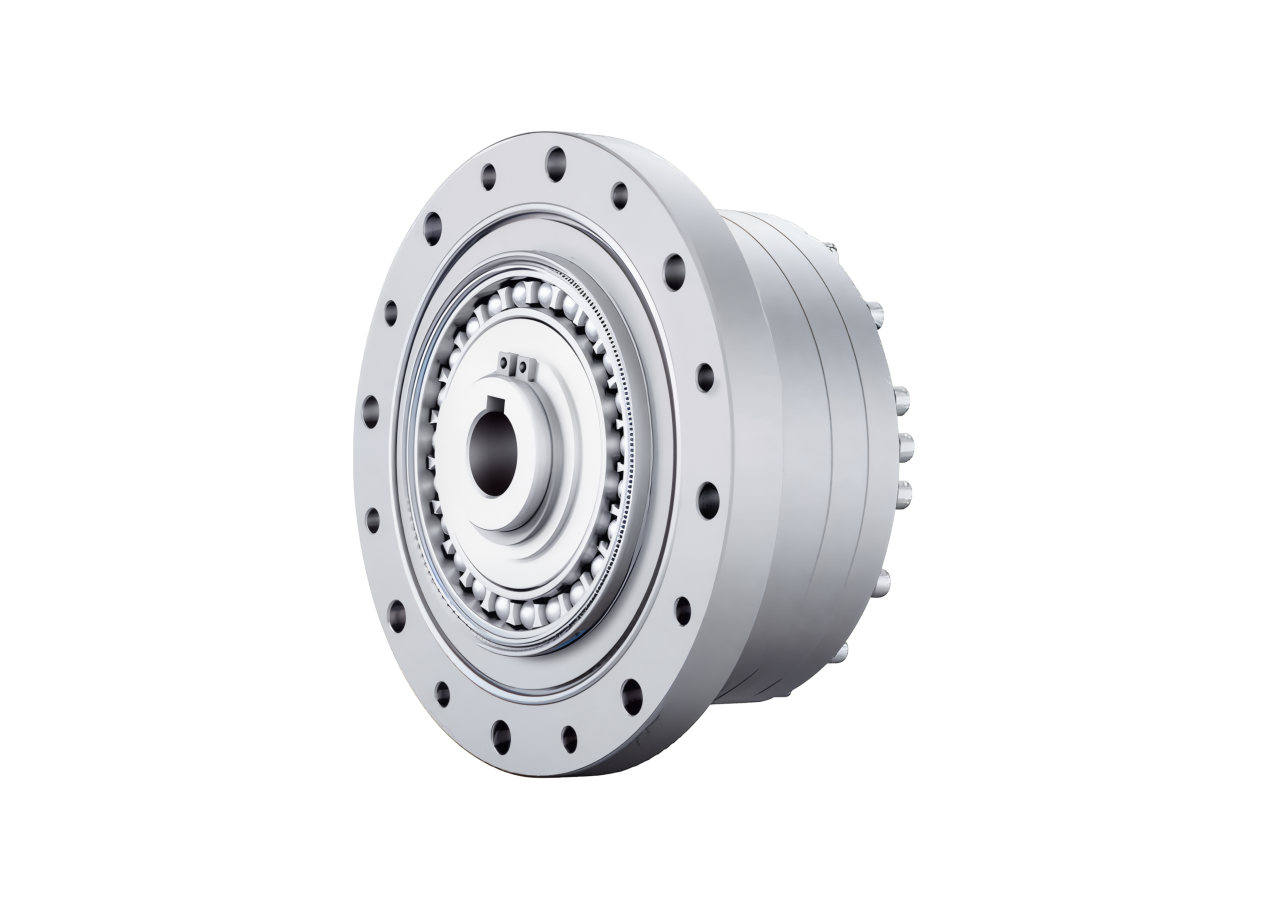

Unit Type(CGUH)
Cup Type Harmonic Drive
Unit Type

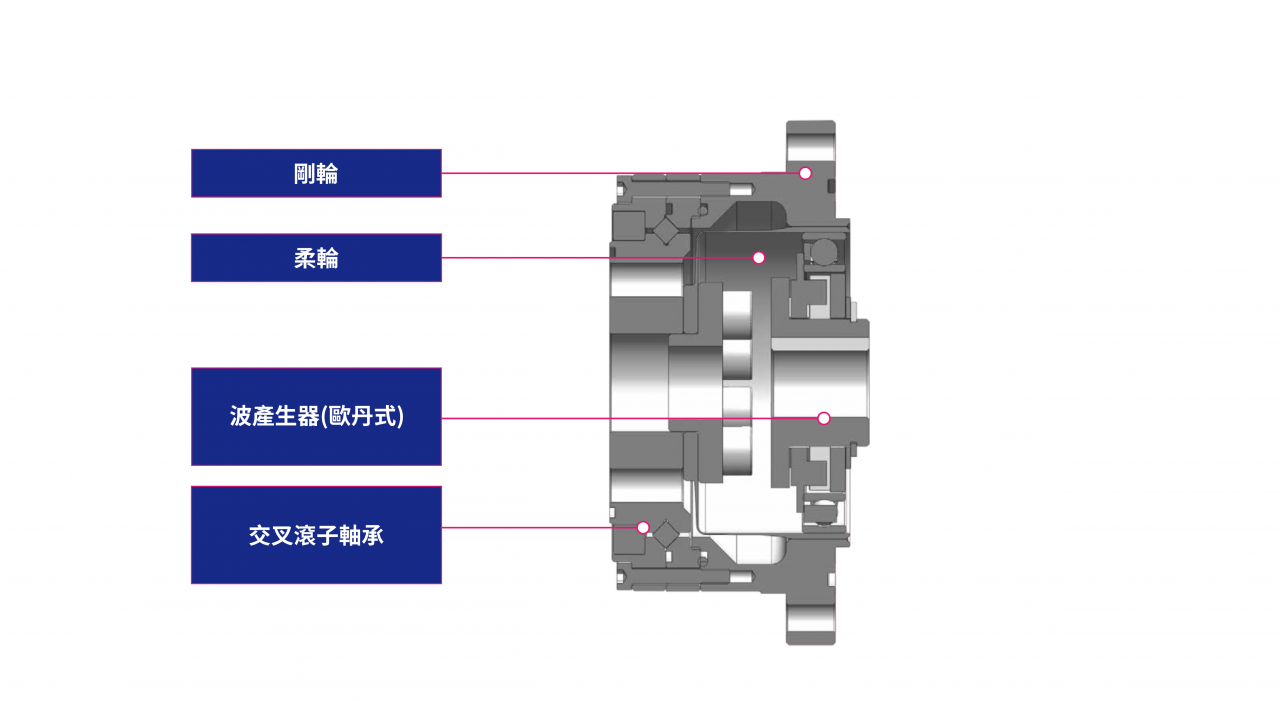

Features
Integrated cross roller bearing, the output end can bear torque and bending torque.
CGUH series wave generators are Oldham couplings.
Oldham couplings can provide large concentricity offset, and machinery and reducers can withstand low assembly accuracy.
Applications
Automation/ Industry 4.0 / Robotics.
Unit Type
Features
Integrated cross roller bearing, the output end can bear torque and bending torque.
CGUH series wave generators are Oldham couplings.
Oldham couplings can provide large concentricity offset, and machinery and reducers can withstand low assembly accuracy.
Applications
Automation/ Industry 4.0 / Robotics.

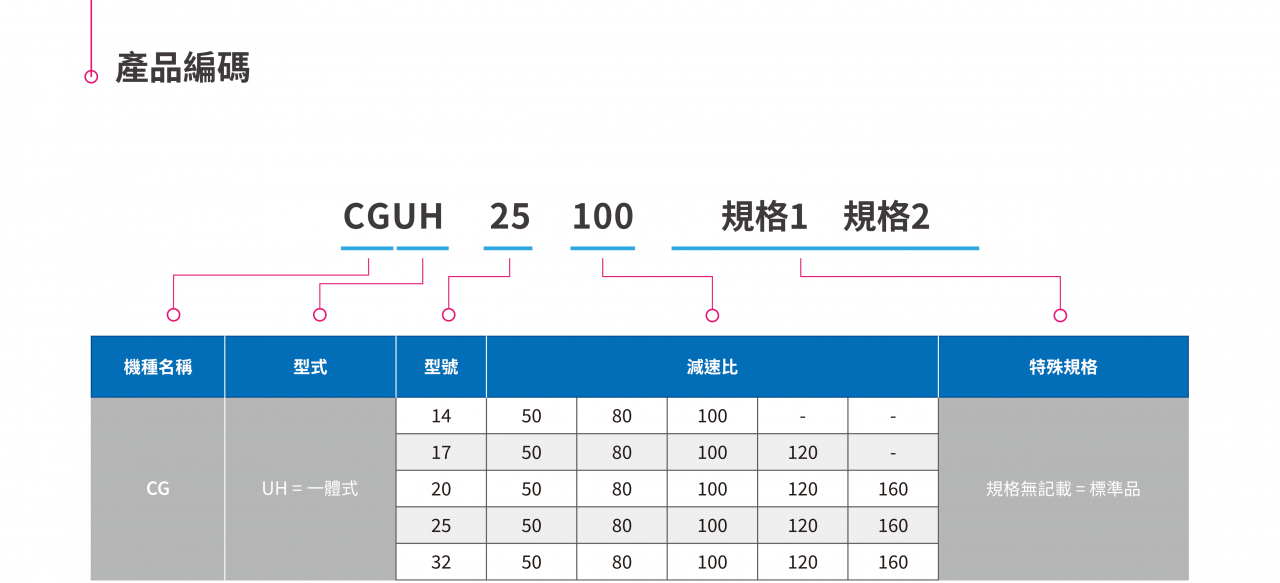

Product Coding

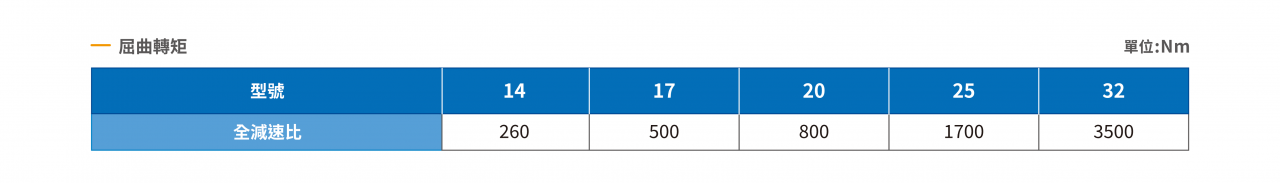

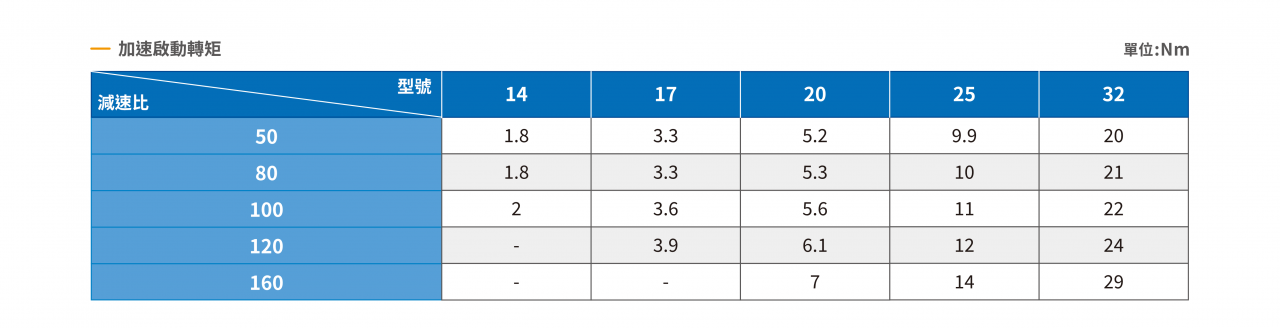

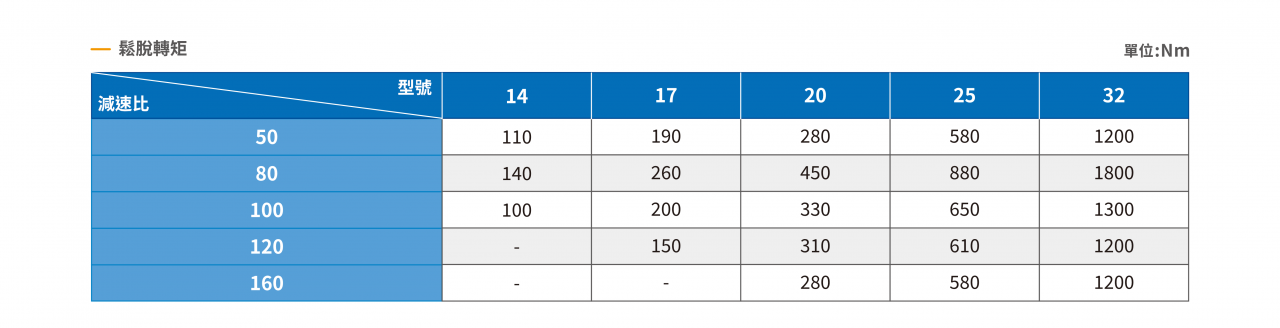

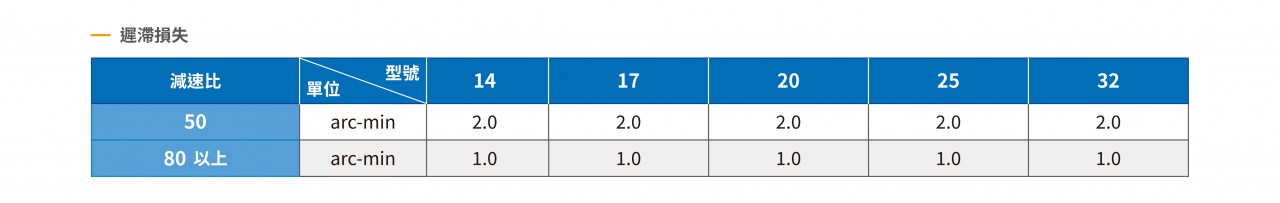

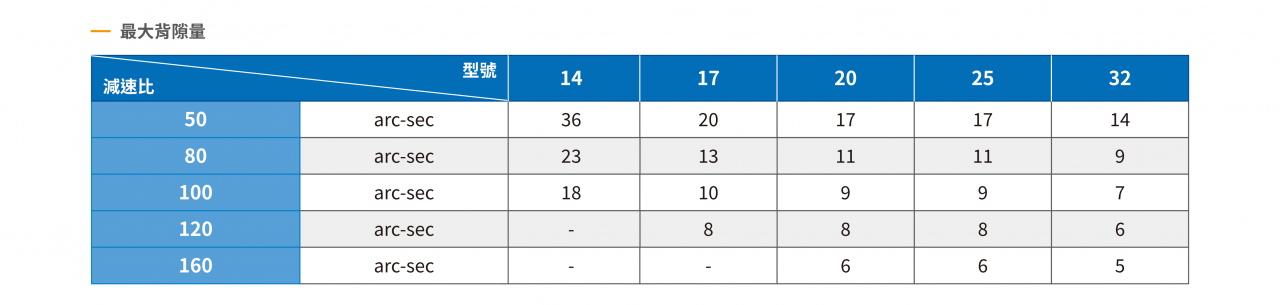

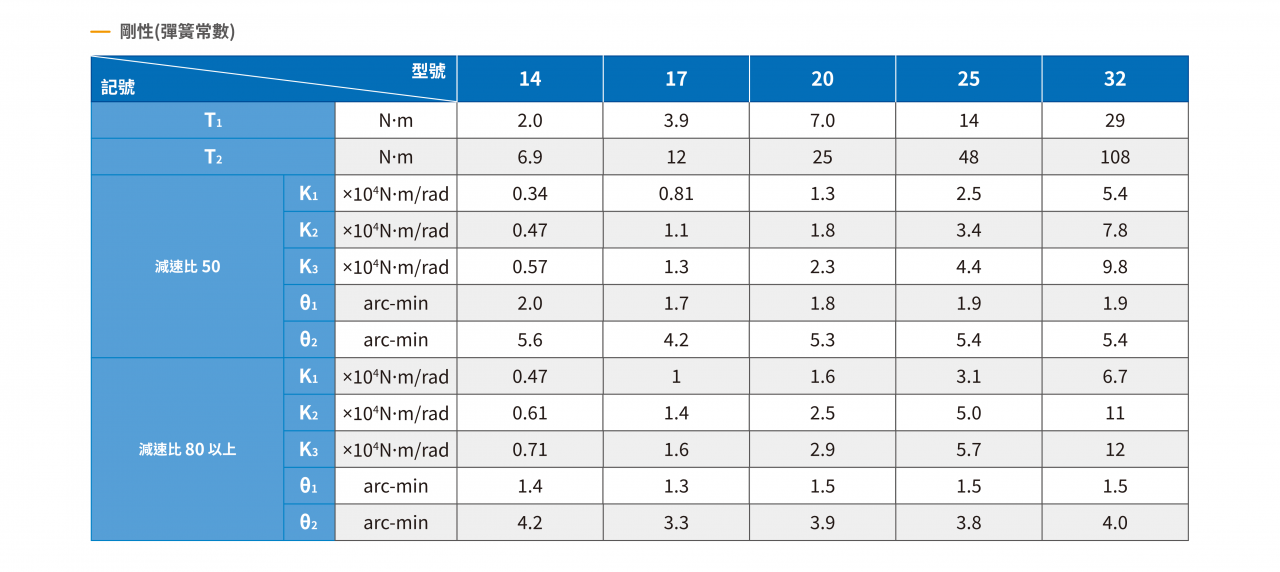

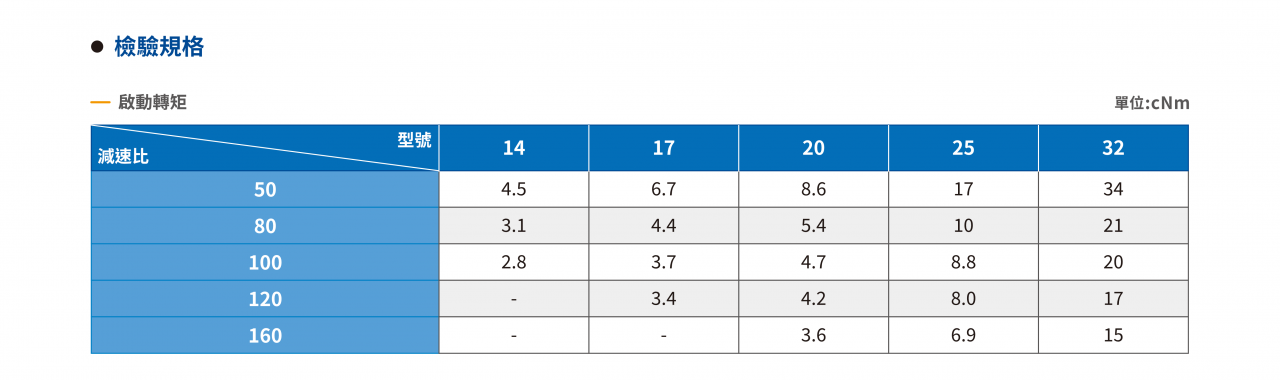

Rated Table

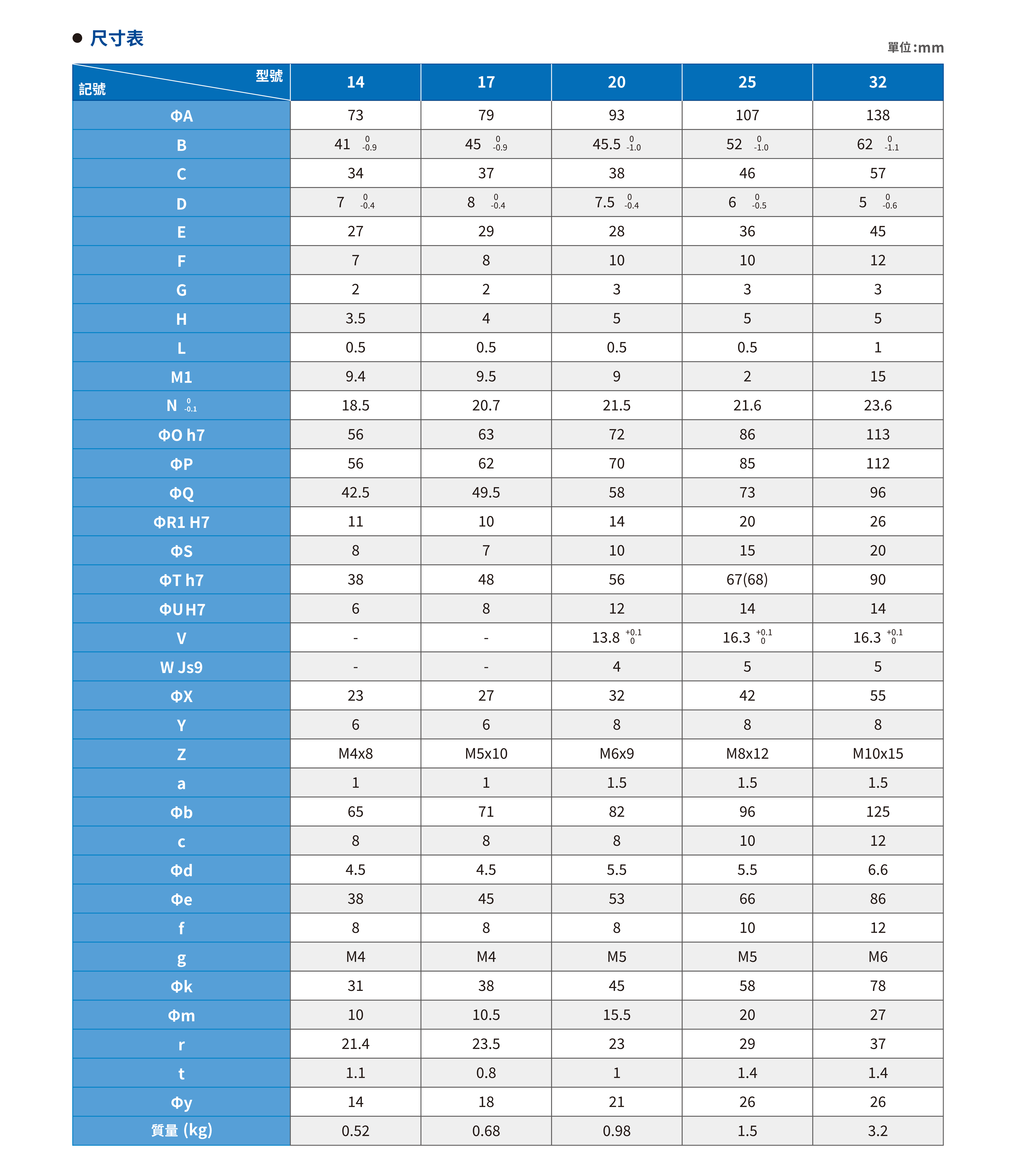

Appearance Drawing
