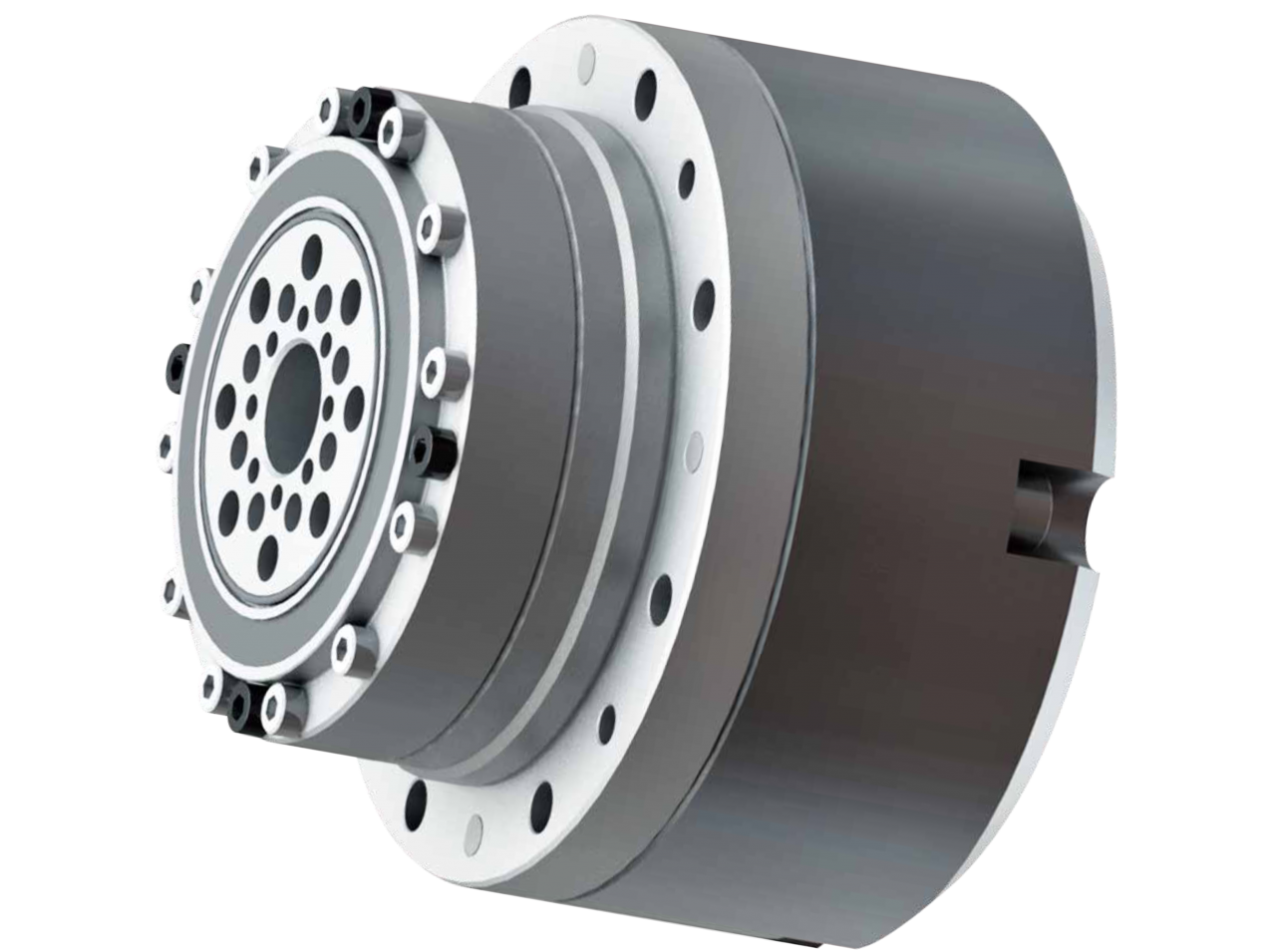

Cup Type with Flange Type(CGGH)
Cup Type Harmonic Drive
Cup Type with Flange Type

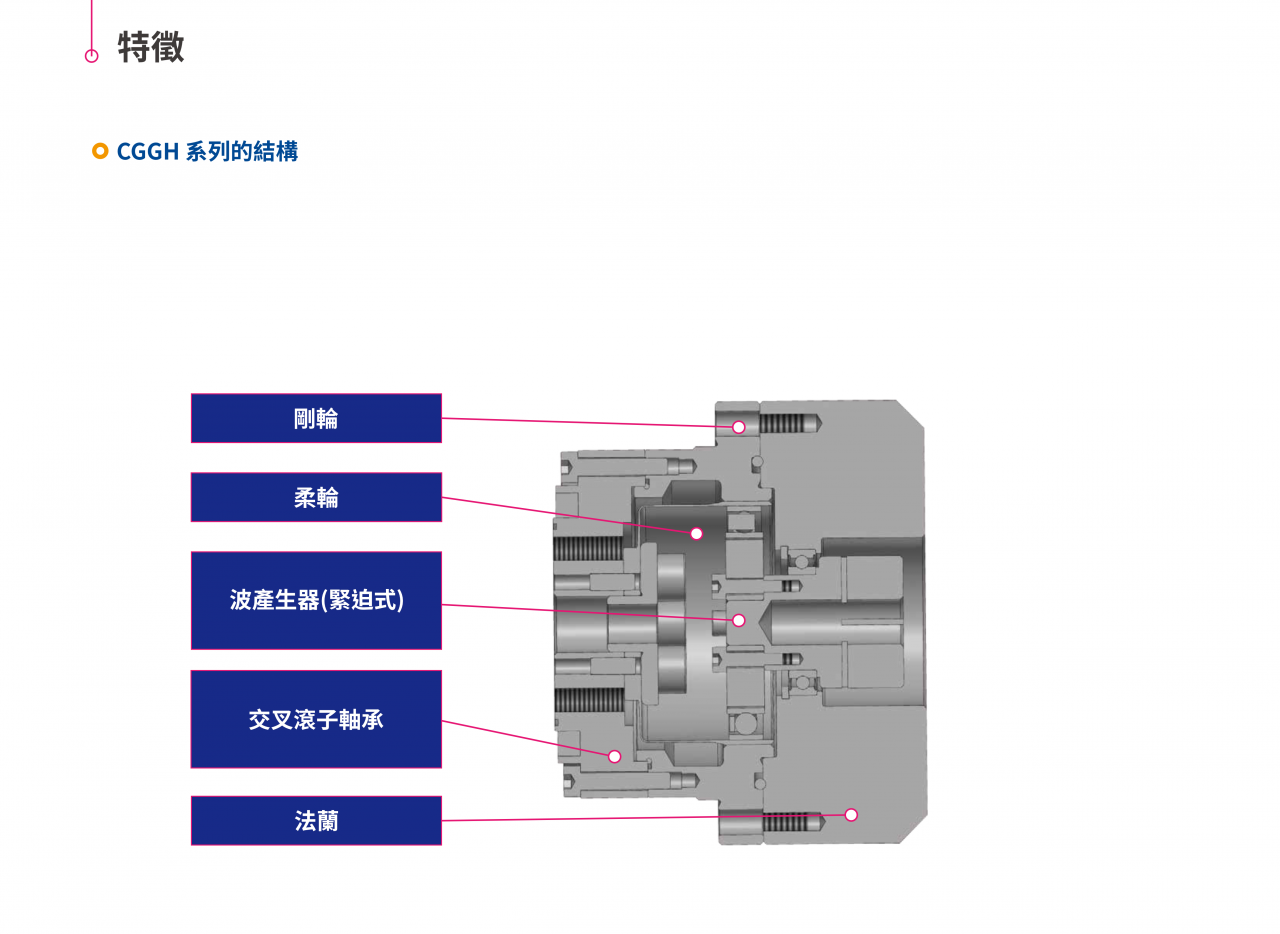

Features
The reducer includes a motor quick coupling interface (the pressing coupling, corresponding to the motor frame number),
and the output end can be equipped with flange face or output shaft type products,
which can be easily integrated and applied in the field of automation and tools.
Applications
Automation/ Industry 4.0 / Robotics.
Cup Type with Flange Type
Features
The reducer includes a motor quick coupling interface (the pressing coupling, corresponding to the motor frame number),
and the output end can be equipped with flange face or output shaft type products,
which can be easily integrated and applied in the field of automation and tools.
Applications
Automation/ Industry 4.0 / Robotics.

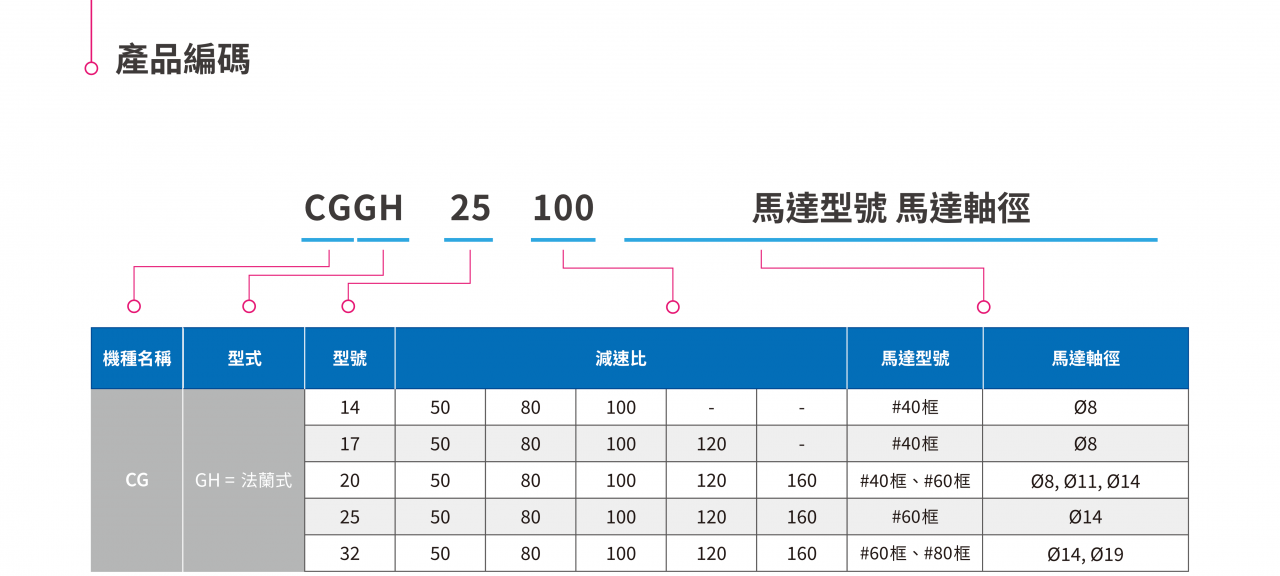

Product Coding

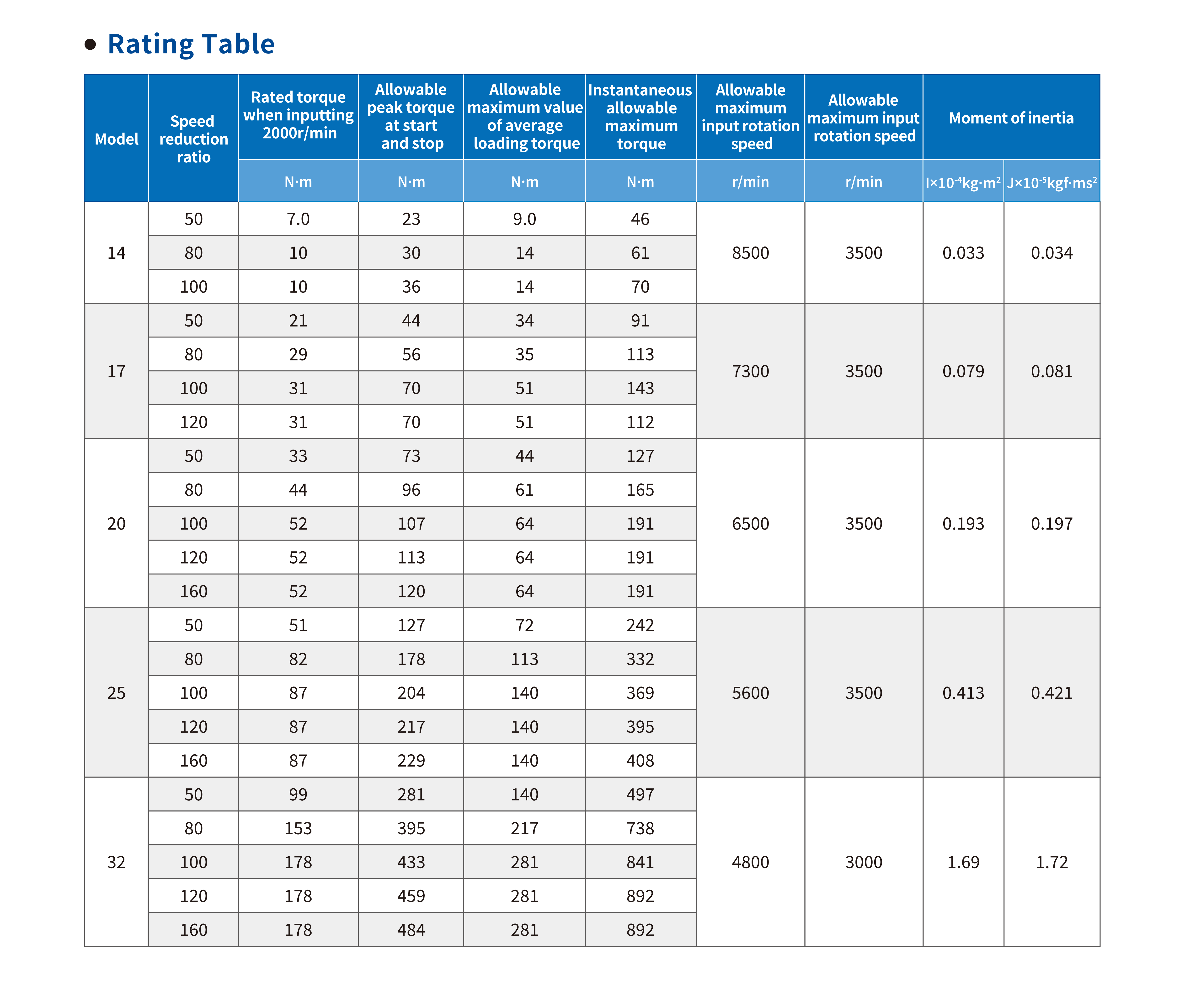

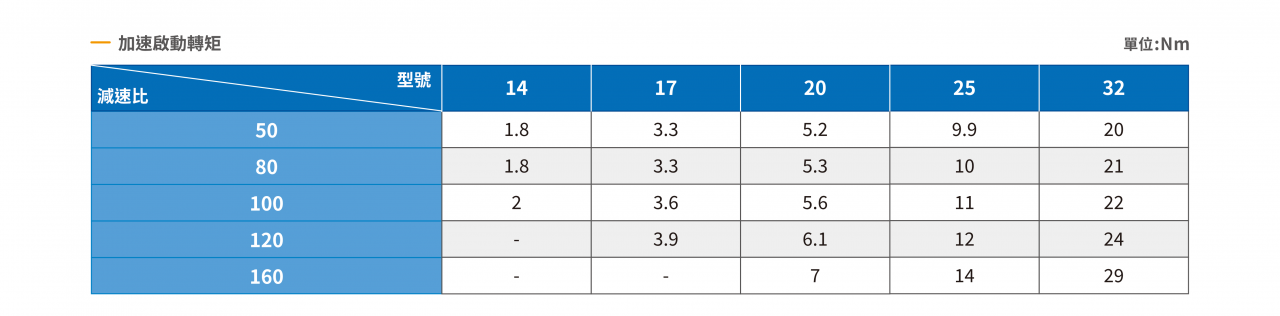

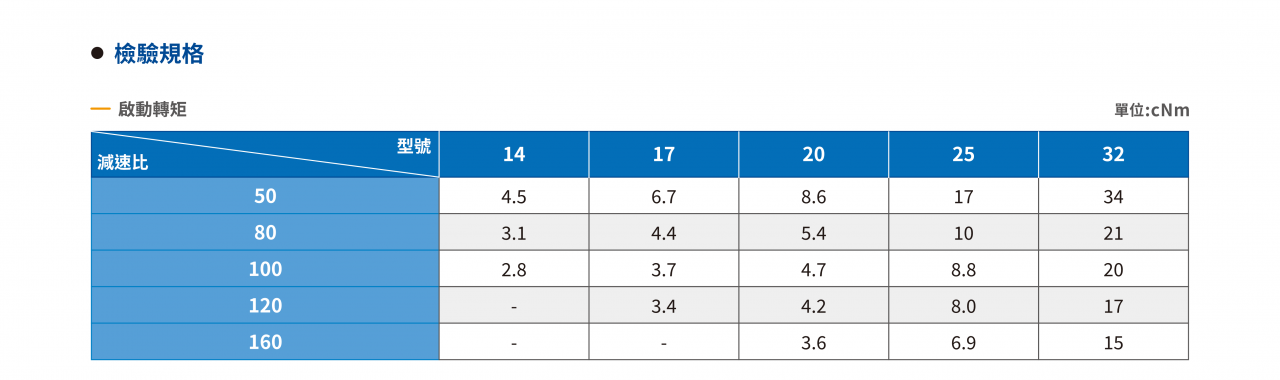

Rated Table

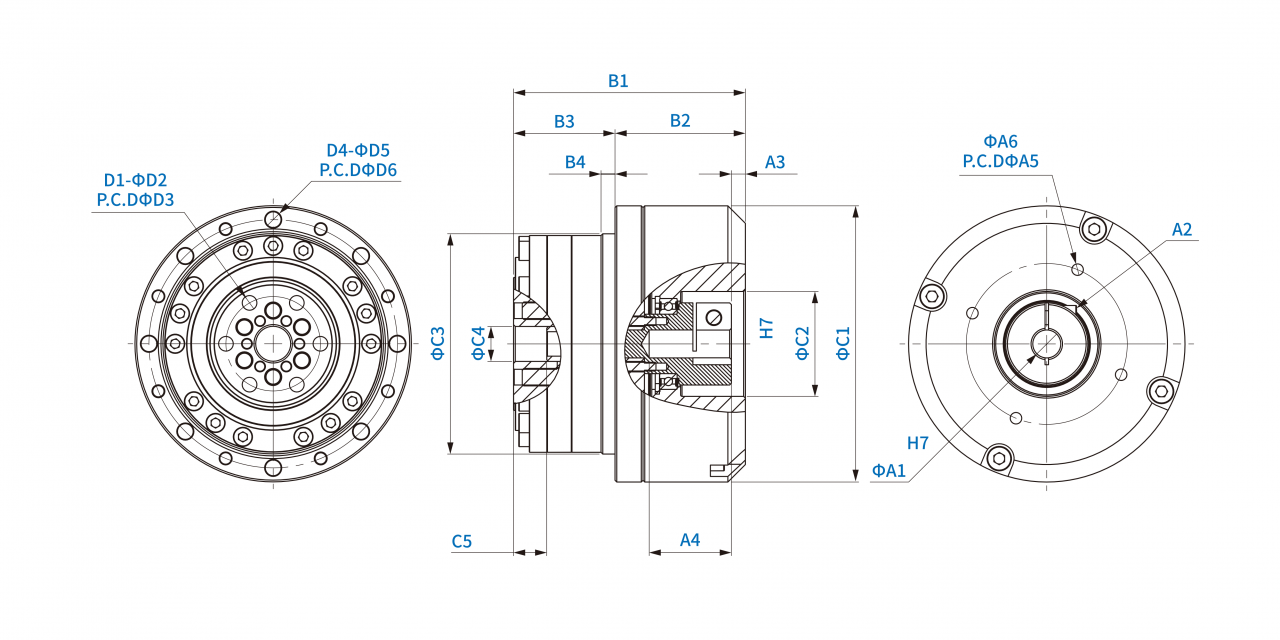

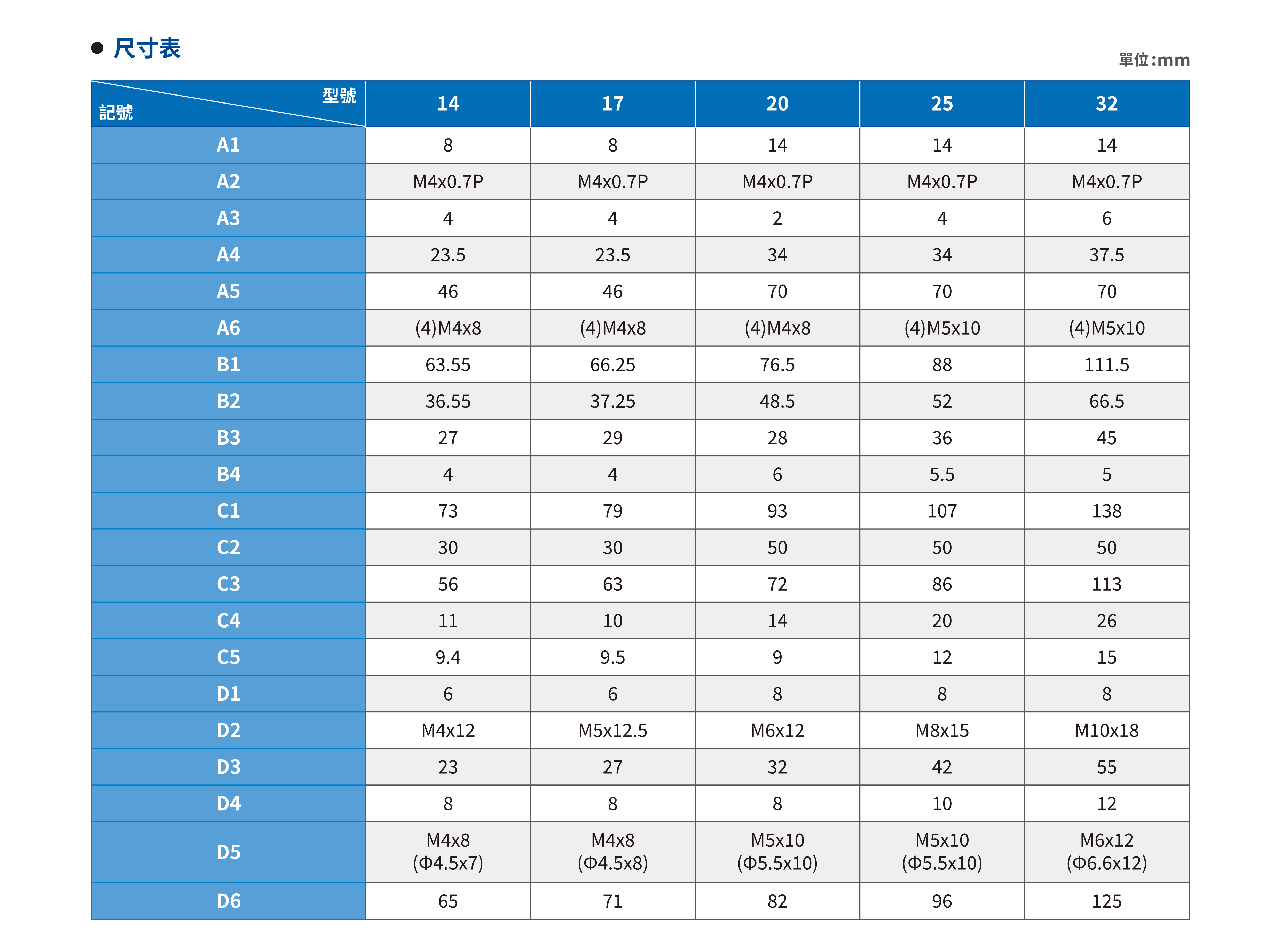

Appearance Drawing
